magnetic track light 39mm pendant series

  • magnetic track light 39mm pendant series
  • magnetic track light 39mm pendant series
  • magnetic track light 39mm pendant series
  • magnetic track light 39mm pendant series
Model No.︰ pendant series
Brand Name︰vandolite
Country of Origin︰China
Unit Price︰US $ 12 / pc
Minimum Order︰50 pc
Share on:

 Total 11 Related Items
Prev12345Next

Product Description

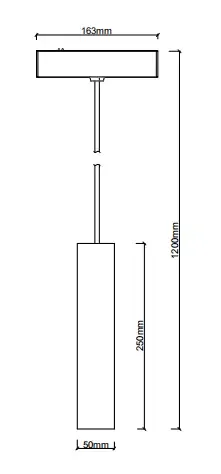

Technical drawing











Schematic light drawing

Beam Angle:36°
h(m) E(lx) D(m)
1 1538 0.64
2 384 1.28
3 170 1.92
4 96 2.56
5 61 3.21




Main specifications
  Number of heads: 1
  Lamp category: LED
  Power: 10W
  CCT: 2700K/3000K/4000K/5000K
  CRI: 80/90
  Lumen(lm): 692
  Mountings: Magnetic Track
  Environment: Indoor
Optical
  Lighting type: Direct
  LED type: SMD LED
  Lighting distribution: Symmetric
  Optical type: Spot
  Beam angle(°) 18/24/36
Electrical
  Voltage(V): 24
  Dimmable: Yes
  Driver: Remote
  Driver type: Electronic
  Emergency: Without
  Insulation class:
Physical
  Color: Black RAL9005/white RAL9003
  Orientation: No
  Weight(kg): 0.65
Package
  Number/Ctn(kg): 12
  N.W/Ctn(kg): 7.8
  G.W/Ctn(kg): 9.6
  L*W*H(cm): 56*32*35.5
Certificates

Payment Terms︰TT
Product Image






www.vandolighting.com
